RCA Theremin Replacement Parts
The RCA Theremin Replacement Parts document is taken from the printed original and has been carefully digitized so that the text is searchable.
RCA Theremin Replacement Parts
| No. | Description | Price |
|---|---|---|

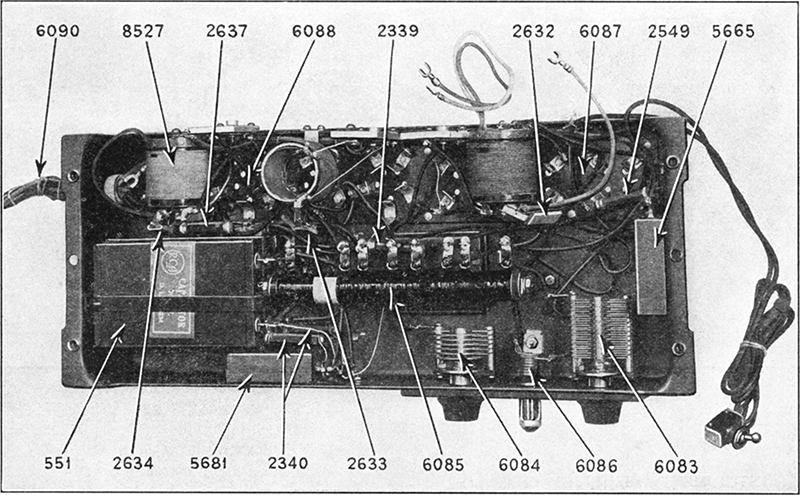

| INSTRUMENT ASSEMBLIES | ||
| 551 | Condenser—Fixed condenser—By-pass—2 mfd. | $ 2.55 |
| 2558 | Switch—Power line "On-Off" operating switch or "Play-Off" switch | 1.30 |
| 2016 | Jack—Pin Jacks complete with insulating washers—1 pair | .75 |
| 2339 | Resistor—Time control resistor—100,000 ohms Carbon type | .70 |
| 2340 | Resistor—5000-ohm carbon type bias resistor | .70 |
| 2538 | Clip—Contact clip with flexible lead for Radiotron UY-224 (Not illustrated)—Package of 5 | 1.20 |
| 2549 | Resistor—¼ megohm—Carbon type shunt resistor across secondary of second audio transformer—Package of 5 | 3.00 |
| 2632 | Condensers—Volume Control oscillator tuning condenser. Capacity 580 mmf. approximate | .70 |
| 2633 | Condensers—Fixed pitch oscillator tuning condensers. Capacity 1160 mmf. approximate | .65 |
| 2634 | Condensers—Variable pitch oscillator tuning condensers. Capacity 1200 mmf. approximate | .65 |
| 2637 | Resistor—10,000-ohm carbon type load equalizing resistor | 1.00 |
| 2638 | Coil—Concentrated coil for loading pitch coil (Not illustrated) | 1.90 |
| 2639 | Knob—Volume or pitch adjustment knob with arrow and set screw—3/16" shaft hole | 1.00 |
| No. | Description | Price |
|---|---|---|
| INSTRUMENT ASSEMBLIES (Continued) | ||
| 2640 | Switch—Safety switch mechanism with mounting screws | $ 1.95 |
| 2680 | Condenser—Fixed condenser—.02 mfd.—Across loudspeaker terminals | 1.00 |
| 5665 | Condenser—Fixed condenser—1 mfd. Volume control oscillator by-pass condenser | 1.80 |
| 5681 | Condenser—Fixed condenser ½ mfd. on each side of mid-tap—Pitch oscillators by-pass condenser | 2.00 |
| 5805 | Transformer—Audio transformer in metal Container | 4.80 |
| 5806 | Condensers—Pitch antenna blocking condensers or volume antenna blocking condensers—3 Fixed condensers in one unit—Capacity 2500 mmf. (Not illustrated) | 1.55 |
| 6022 | Condenser—Trimming condenser for adjusting volume control oscillator, fixed pitch oscillator and variable pitch oscillator | 1.00 |
| No. | Description | Price |
|---|---|---|
| 6083 | Condenser—Variable condenser with mounting nut for adjusting volume control—Capacity 135 mmf.—Less knob | $ 3.90 |
| 6084 | Condenser—Variable condenser with mounting nut for pitch adjustment—Capacity 55 mmf.—Less knob | 3.30 |
| 6085 | Resistor—12,595-ohm glazed porcelain—Grid bias and plate resistor—5 sections—8 terminals | 4.50 |
| 6086 | Socket—Pilot lamp socket and bracket—Comprising socket fastened to Micarta strip—Strip includes bracket for mounting to chassis | 1.40 |
| 6087 | Socket—3-gang UX type Radiotron socket | 2.40 |
| 6088 | Socket—4-gang UY type Radiotron socket | 3.00 |
| 6089 | Shield—7-gang protective shield for 3 and 4 gang sockets (Not illustrated) | .50 |
| No. | Description | Price |
|---|---|---|
| INSTRUMENT ASSEMBLIES (Continued) | ||
| 6090 | Cabler—Laced cable for wiring chassis—Chassis to S. P. U. | $ 2.00 |
| 8346 | Condensers—Filter condenser with output condenser and choke in metal container—seven condensers and one choke | 16.50 |
| 3527 | Coil Assembly—Comprising volume control oscillator coil, fixed pitch oscillator coil, variable pitch oscillator coil, adjustable condensers—Volume oscillator tuning condenser, fixed pitch tuning condenser, variable pitch tuning condenser wired and mounted on metal strip | 8.85 |

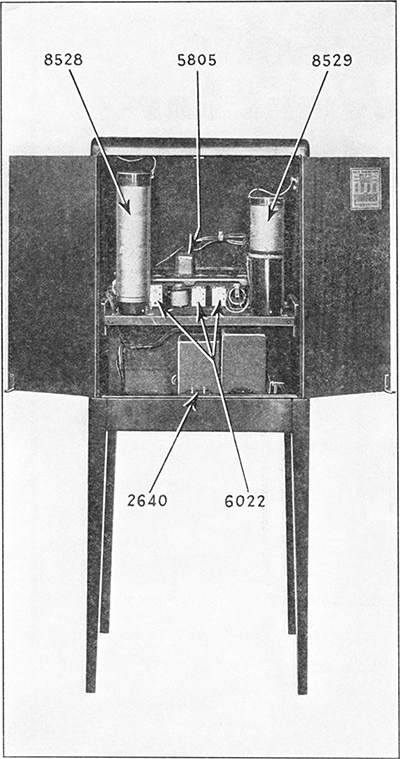

| 8528 | Coil—Pitch resonance control coil with concentrated loading coil, fixed blocking condenser and 3 mounting brackets | 11.85 |
| 8529 | Coil—Volume resonance control coil with blocking condenser and 3 mounting brackets | 7.95 |
| No. | Description | Price |
|---|---|---|

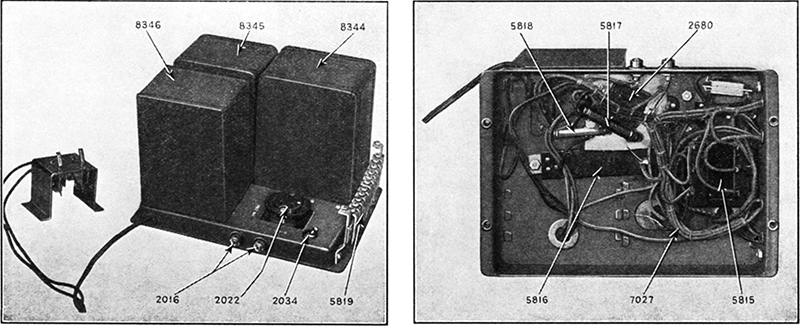

| S. P. U. ASSEMBLIES | ||
| 2022 | Socket—Single socket for UX Radiotron in S. P. U. | $ 1.85 |
| 2034 | Switch—Two-position power line adjustment switch—toggle type | 1.20 |
| 7027 | Cable-Laced cable for S. P. U. | 2.00 |
| 5815 | Resistor Assembly—Two 60-ohm resistors with midtaps and mounting bracket | 1.40 |
| 5816 | Resistor—Flat resistor in plate supply of oscillators—2250 ohms | .90 |
| 5817 | Resistor—Bleeder resistor 20,000 ohms—Carbon type | .90 |
| 5818 | Resistor—Plate supply resistor for oscillator—14,300 ohms | .90 |
| 5819 | Strip—Terminal strip with 2 mounting brackets, 11 terminals and screws | 1.05 |
| 8344 | Transformer—60-cycle power transformer in metal container | 12.90 |
| 8345 | Choke Coil—In metal container | 10.05 |
